TROES Standard SERIES

Standard Offering

North America’s most versatile lineup of Standard Battery Energy Storage System:
Cabinet | Container | 0.5C & 1C
(80 – 5010) kWh | Single Unit
(30 – 2580) kW | Single Unit

Flexible and Cost-Efficient Deployment

Performance and Reliability Assurance

Continuous Improvement and Compliance

Efficient Management for Distribution

RESOURCES

Adaptable, Modular Energy Storage Systems: TROES Standard SERIES

Learn more about the energy storage systems TROES offers why we are different from the competition.

DOWNLOAD BROCHURE

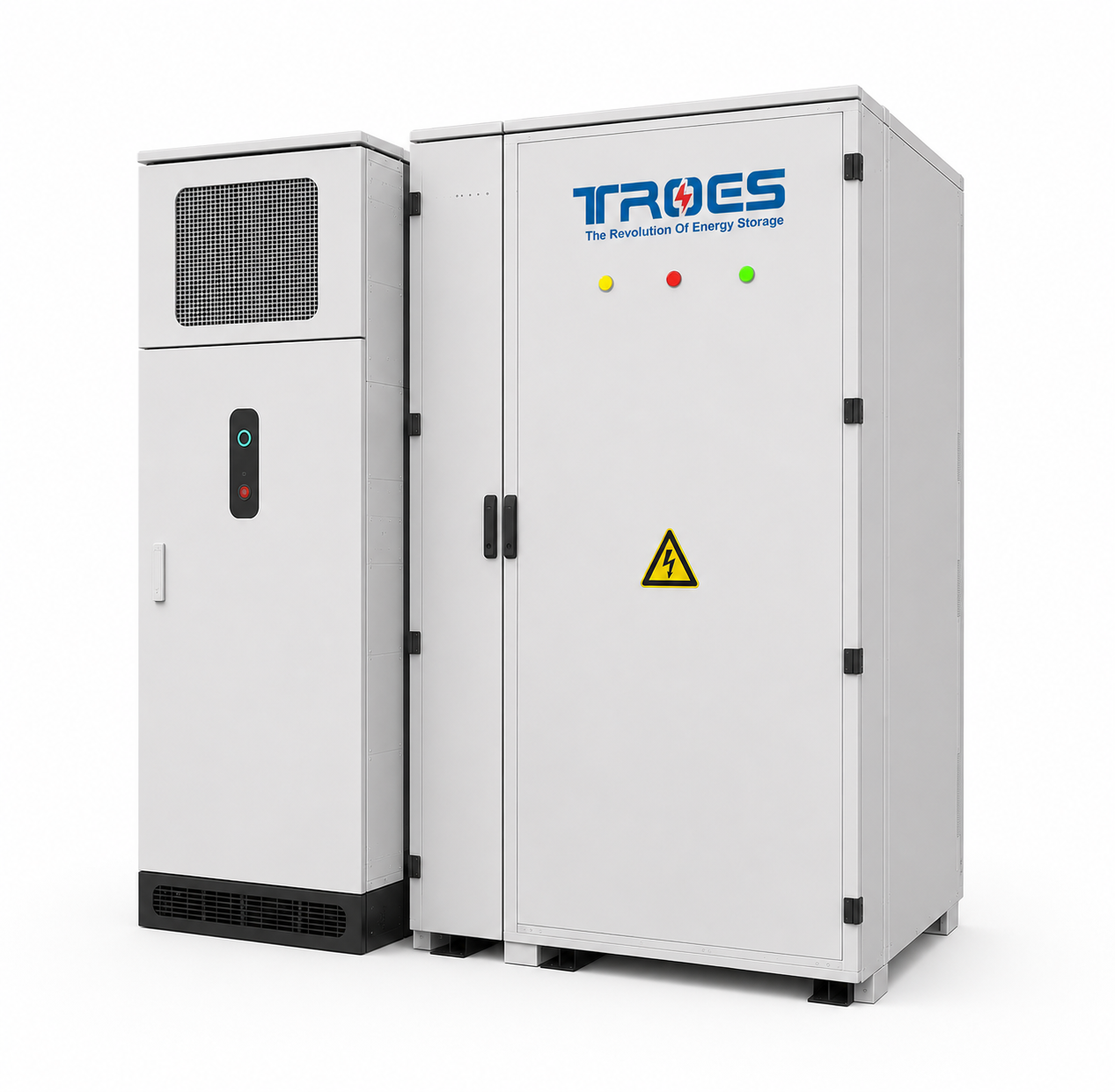

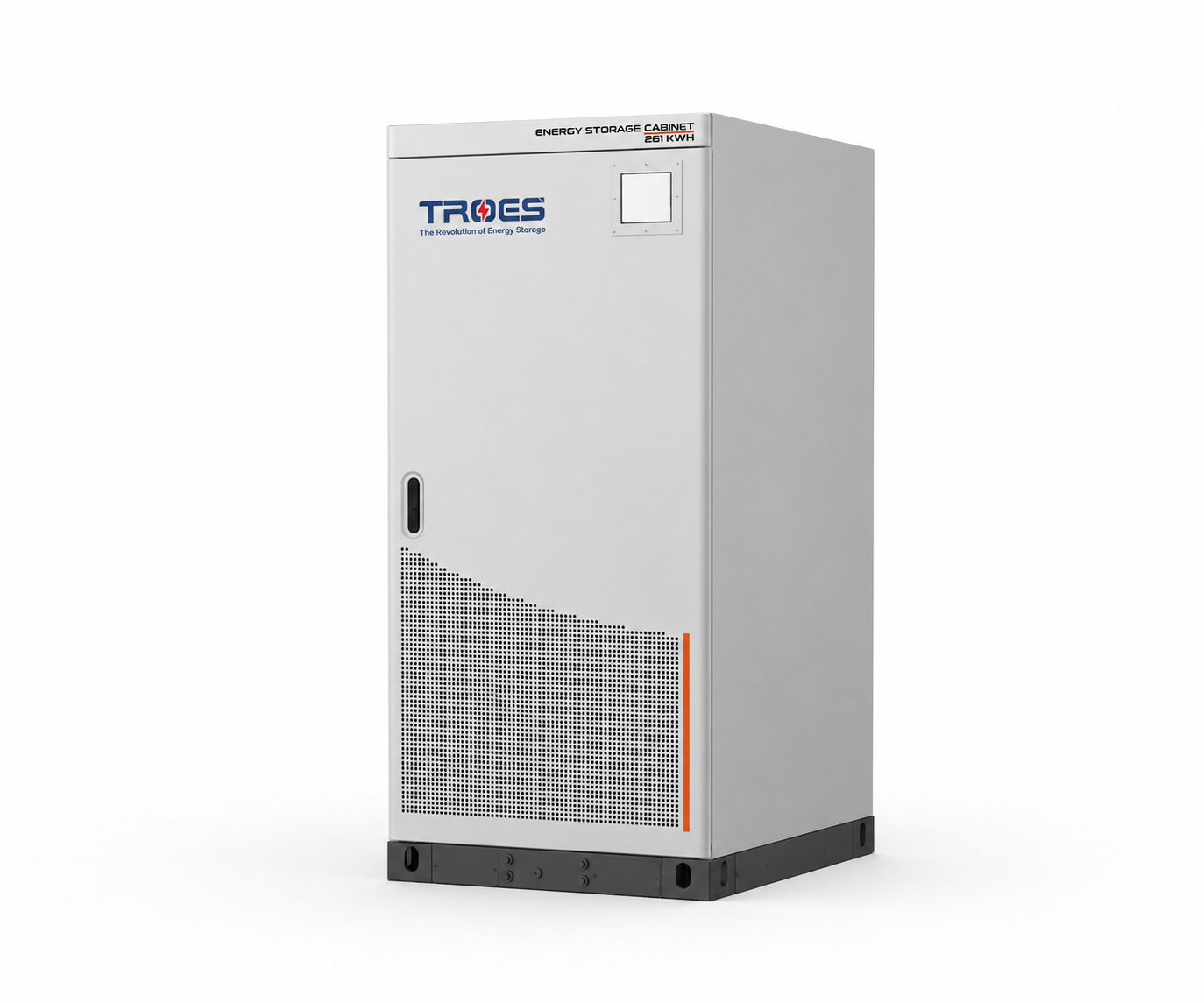

Cabinet

Product rendering for illustration purposes only

Nominal Capacity per unit	80kWh – 260kWh
Rated Power per unit	≤ 90kW
C-Rate	≤ 0.5C
Dimensions (L x W x H) (mm)	2100 x 1300 x 2450 mm
Power Scalability	Off-Grid: Up to 180kW On-Grid: No limit to on-grid
Embedded Software	MiControl^TM, MiGrid^TM-Operator MiGrid^TM-Monitor
Certifications	UL9540, UL9540A, IEEE-1547, UL1741-SB, UL1973, UN38.3, CSA 22.2 No.107.1 *Approved by California Energy Commission (CEC)

Nominal Capacity per unit	232 kWh – 652 kWh
Rated Power per unit	≤ 250kW
C-Rate	≤ 0.5C
Dimensions (L x W x H) (mm)	1300 x 1300 x 2316 mm (Battery) 650 x 1300 x 2300 mm (PCS)
Power Scalability	Off-Grid: Up to 625kW On-Grid: No limit to on-grid
Embedded Software	MiControl^TM, MiGrid^TM-Operator, MiGrid^TM-Monitor
Certifications	UL9540, UL9540A, IEEE-1547, UL1741-SB, UL1973, UN38.3, CSA 22.2 No.107.1

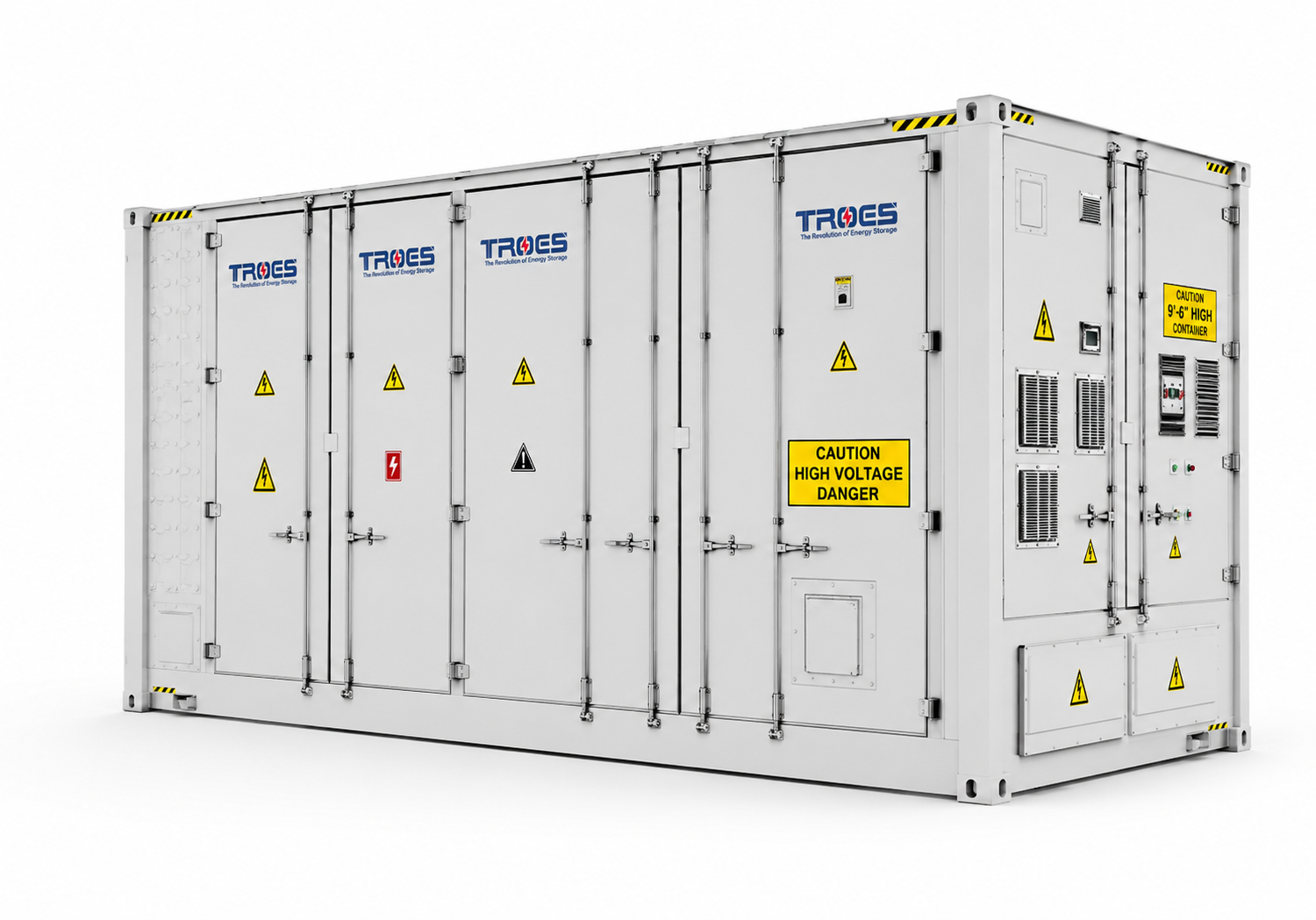

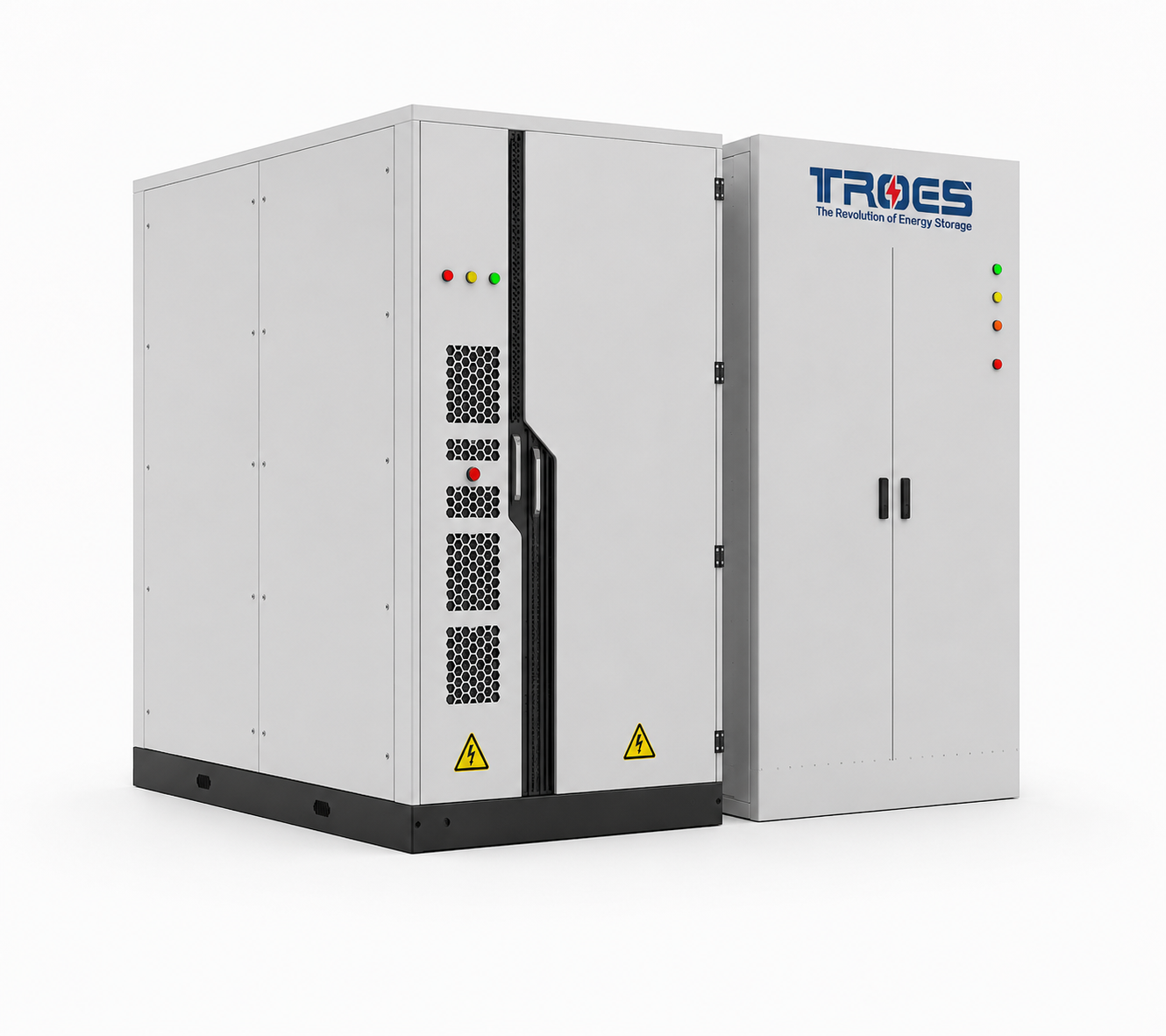

Container

Nominal Capacity per unit	285kWh – 1516 kWh
Rated Power per unit	≤ 700kW
C-Rate	≤ 0.5C
Dimensions (L x W x H) (mm)	1300 x 1300 x 2280 mm (Battery) 650 x 1300 x 2300mm (PCS)
Power Scalability	Off-Grid: Up to 875kW On-Grid: No limit to on-grid
Embedded Software	MiControl^TM, MiGrid^TM-Operator, MiGrid^TM-Monitor
Certifications	cUL/UL9540(DC), cUL/UL1973, UL1741, UL9540A, UN38.3, CSA22.2, IEEE1547, NFPA855

Nominal Capacity per unit	332kWh – 1660 kWh
Rated Power per unit	≤ 1660 kW
C-Rate	≤ 1C
Dimensions (L x W x H) (mm)	1300 x 1300 x 2280 mm (Battery) 1100 x 2280 x 1000 mm (PCS)
Power Scalability	Off-Grid: Up to 1720kW On-Grid: No limit to on-grid
Embedded Software	MiControl^TM, MiGrid^TM-Operator, MiGrid^TM-Monitor
Certifications	cUL/UL9540(DC), UL9540A, IEEE-1547, UL1741, cUL/UL1973, UN38.3, CSA 22.2, NFPA855

Nominal Capacity per unit	3344kWh – 5010kWh
Rated Power per unit	≤ 2505kWh
C-Rate	≤ 0.5C
Dimensions (L x W x H) (mm)	6058 x 2462 x 2896 mm (Battery) 5200 x 2170 x 2365 mm (PCS)
Power Scalability	Off-Grid: Up to 5160kW On-Grid: No limit to on-grid
Embedded Software	MiControl^TM, MiGrid^TM-Operator, MiGrid^TM-Monitor
Certifications	UL9540(DC), UL9540A, cUL/UL1973, UN38.3, UL1741, CSA22.2, IEEE 1547, NFPA855

Nominal Capacity per unit	1672kWh – 2508kWh
Rated Power per unit	≤ 1254 kW
C-Rate	≤ 0.5C
Dimensions (L x W x H) (mm)	6058 x 2462 x 2896 mm
Power Scalability	Off-Grid: Up to 1720kW On-Grid: No limit to on-grid
Embedded Software	MiControl^TM, MiGrid^TM-Operator, MiGrid^TM-Monitor
Certifications	UL9540A, cUL/UL1973, UN38.3, UL1741, CSA22.2, IEEE1547

System Topology

Schematic is for an AC-coupled microgrid. TROES’ BESS can be used in a DC-coupled microgrid or off-grid configuration with other DERs like CHP, hydrogen fuel cell etc.

MiControl^TM: Proprietary system level controller ensuring safe operation and easy integration of the battery energy storage (BESS).

MiGrid^TM-Operator: Proprietary site level controller enabling efficient microgrid operation with BESS.

MiGrid^TM-Monitor: Proprietary platform level management system providing real time multi-site monitoring and optimization.

Active deflagration venting air inlet
Alarm bell
HVAC
Active deflagration venting air outlet
Air inlet louvers
Indicator lights
Emergency power off
